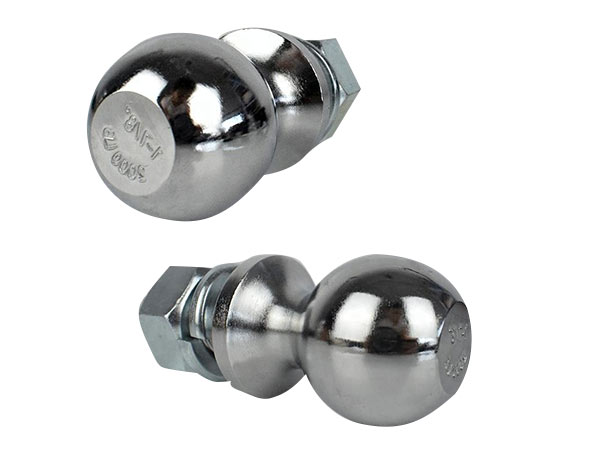

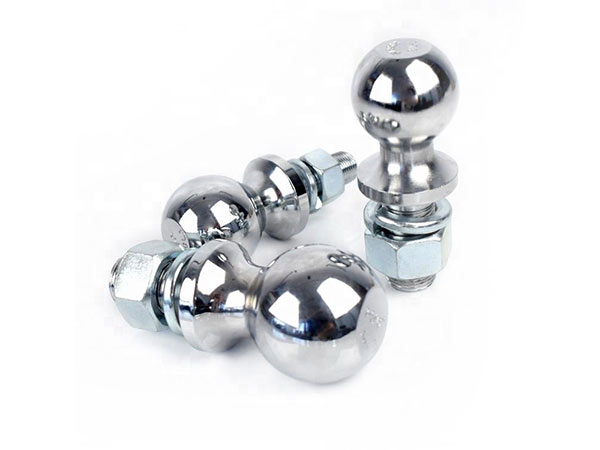

1-7/8 Inch Machined Hitch Ball

1-7/8 inch hitch ball

Hitch ball is a component that is attached to a trailer hitch to help connect the trailer to the tow vehicle. The hitch ball has a threaded shank that is screwed into the trailer hitch receiver, with a lock washer and nut holding it in place. The trailer coupler then fits over the hitch ball and is secured with a locking mechanism to keep the trailer attached to the tow vehicle while in use. Hitch balls come in different sizes and weight capacities, so it's important to use the correct one for your specific towing needs.

Product Details

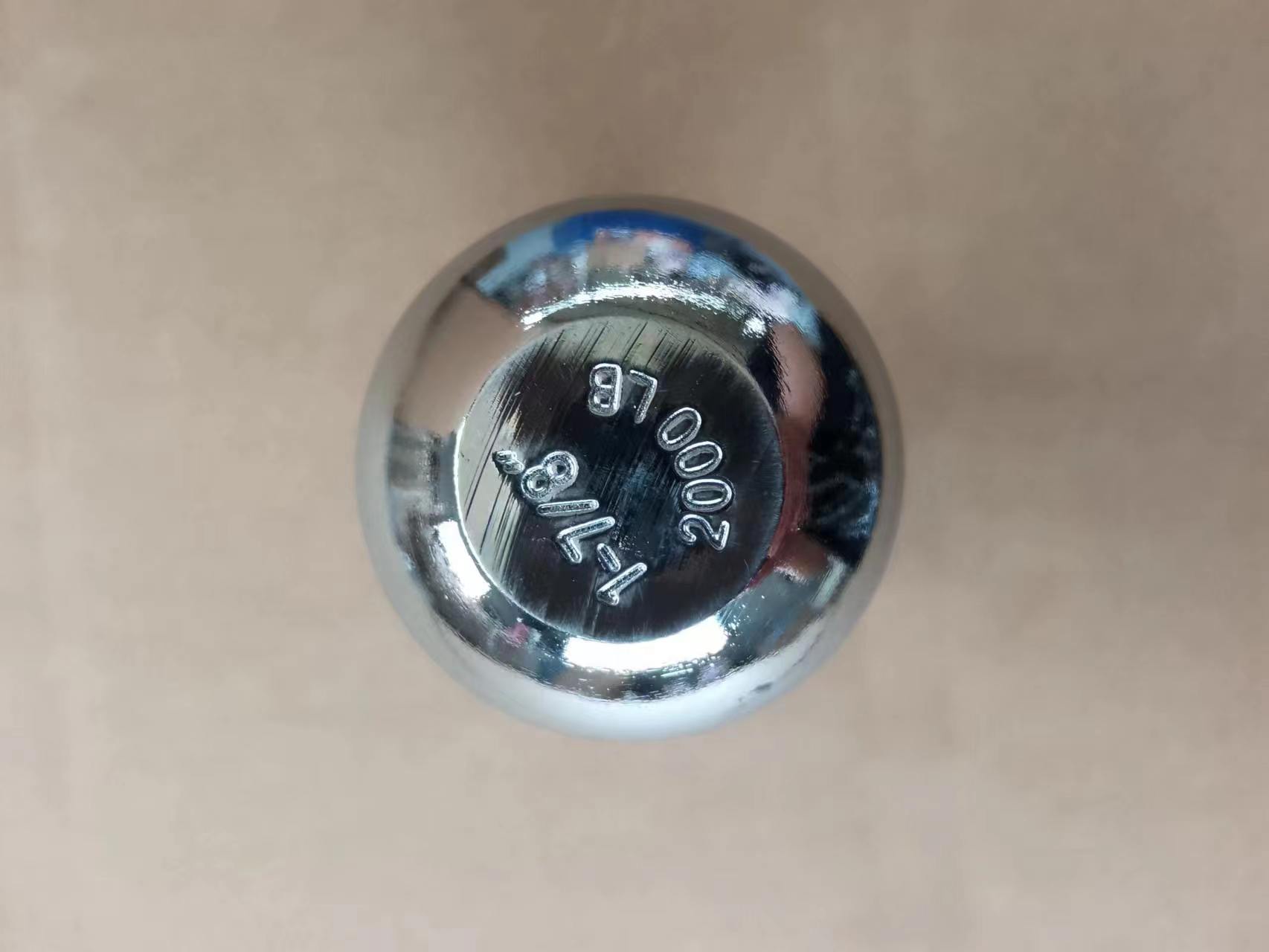

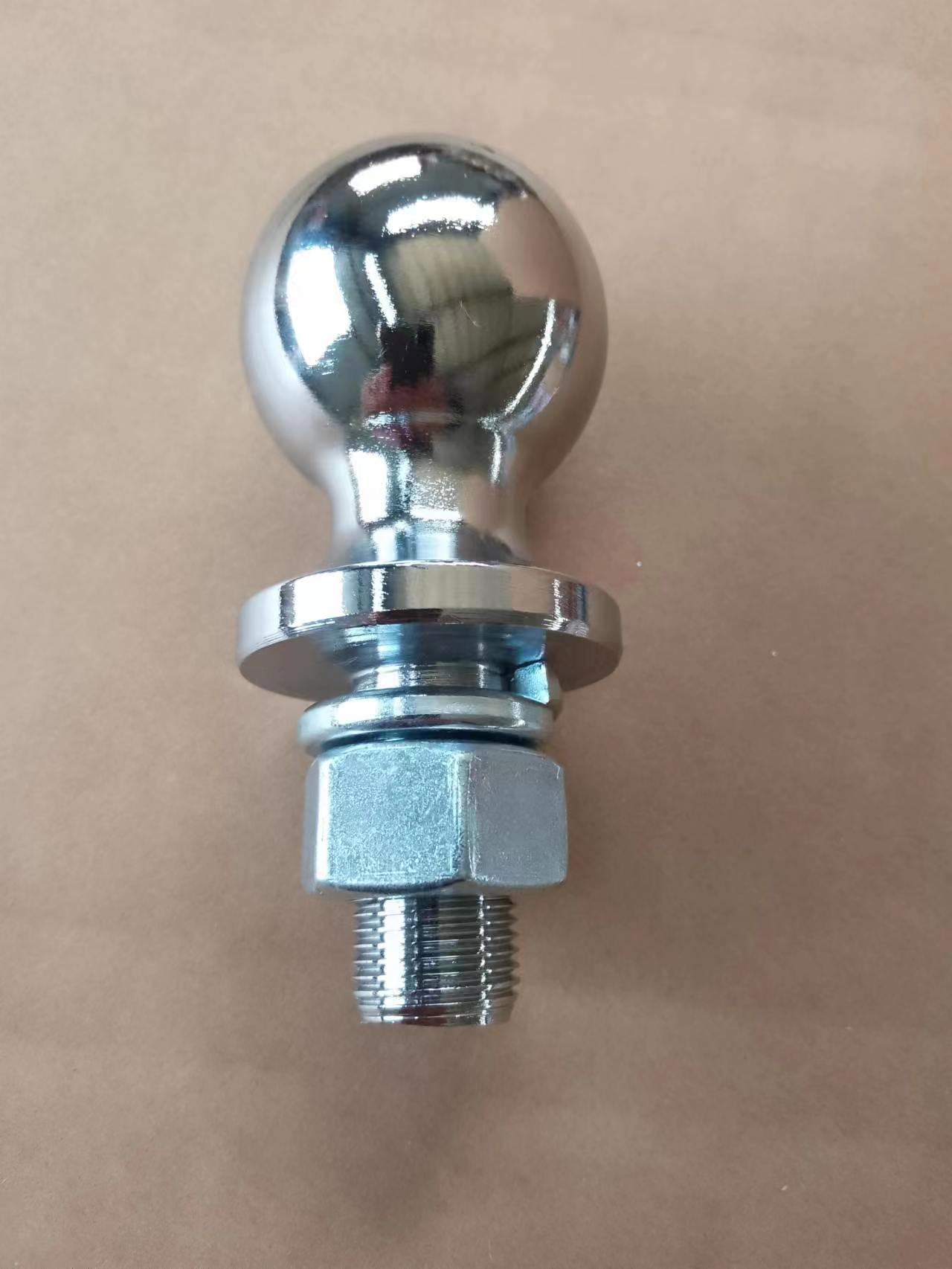

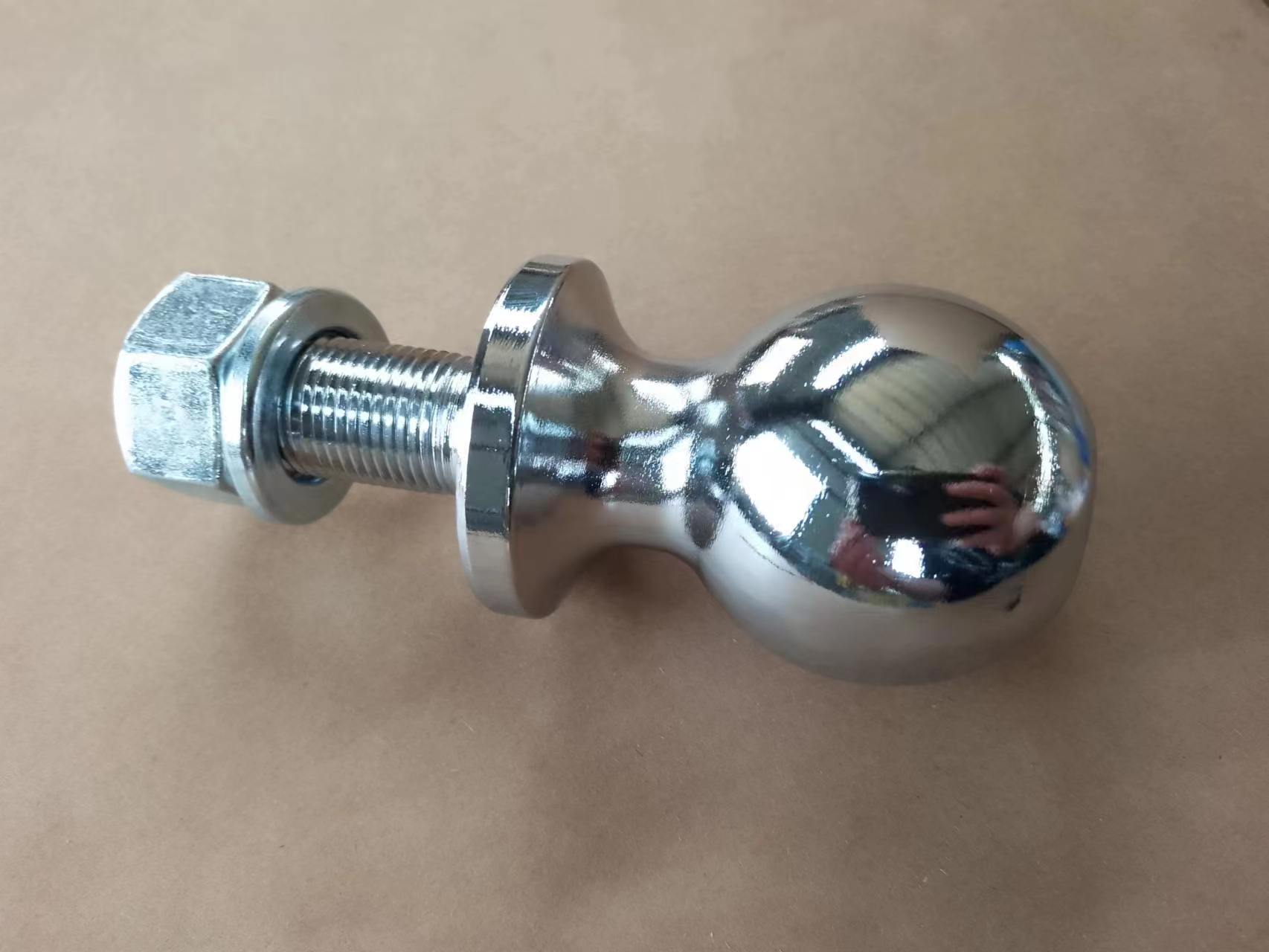

1-7/8 inch hitch ball spec.: 1-7/8”x3/4”x2-1/2"; 1-7/8” ball diameter, 3/4" shank diameter, 2-1/2”shank length, mounting thickness range 3/8" to 2-1/8"

Towing capacity: 2000 lbs

Finish: chrome plating

Material: high strength carbon steel

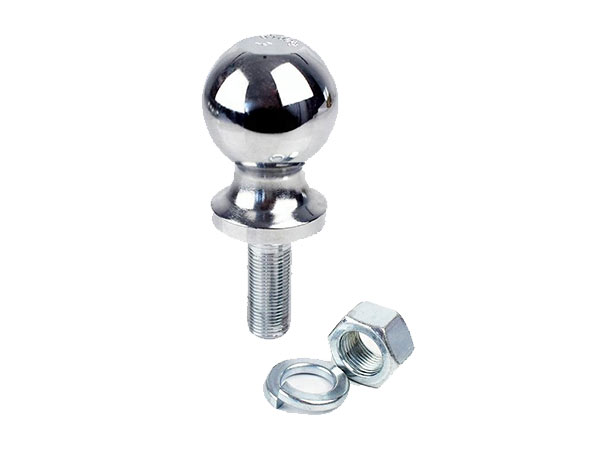

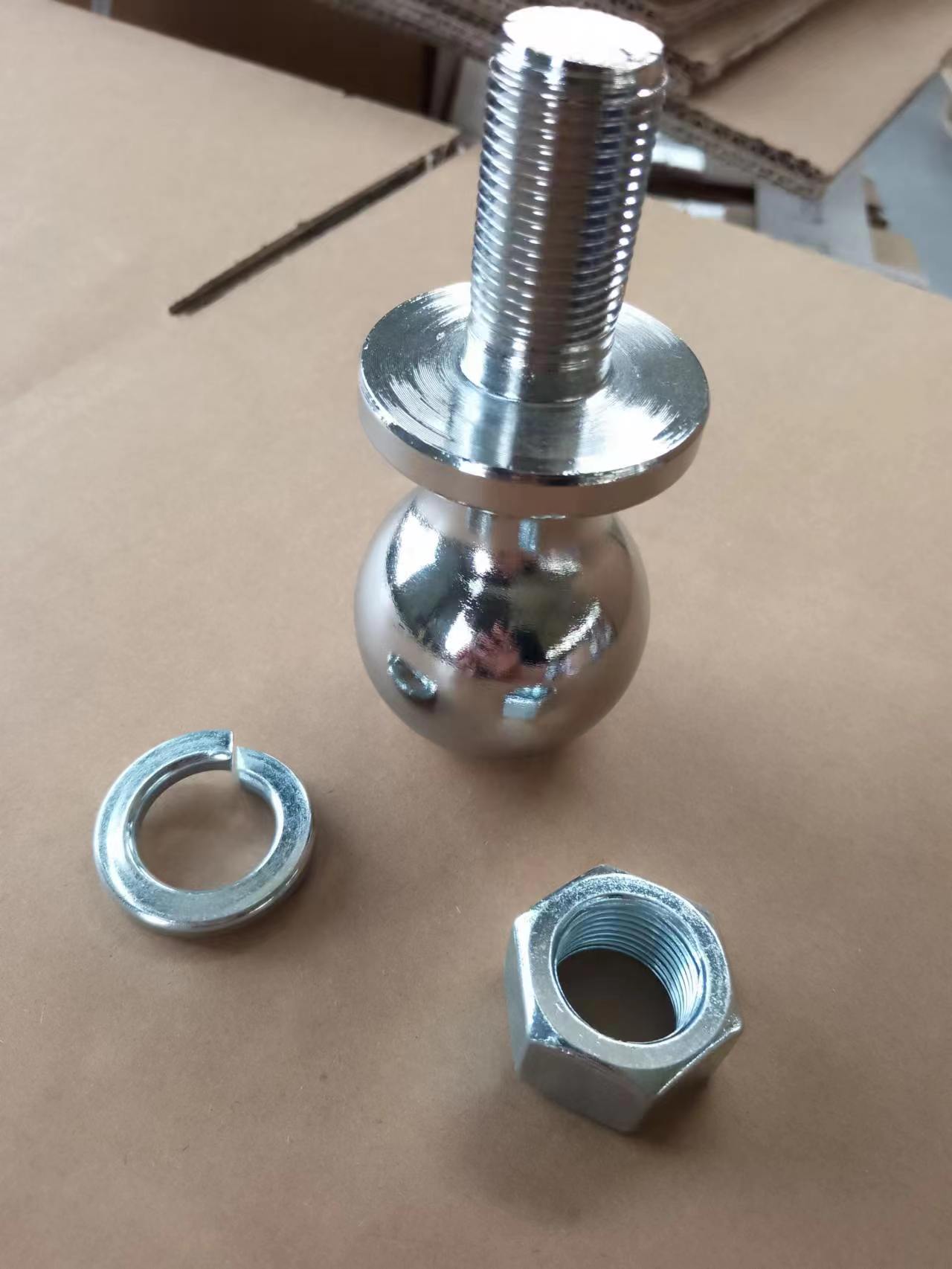

Spare parts: ball comes with nut & washer

Application: trailer, car, marine, etc.

Standard: US SAE.J684 standard

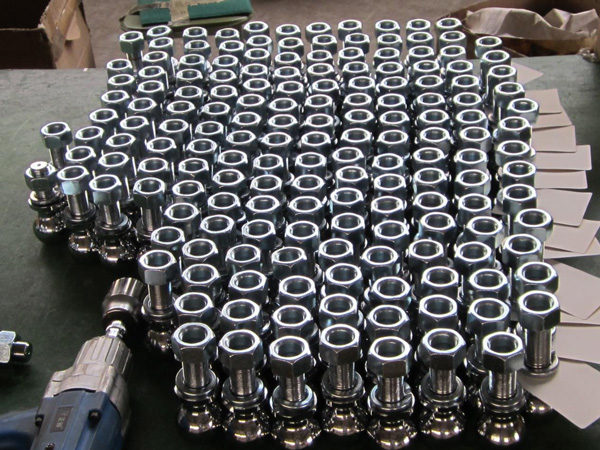

Product Package

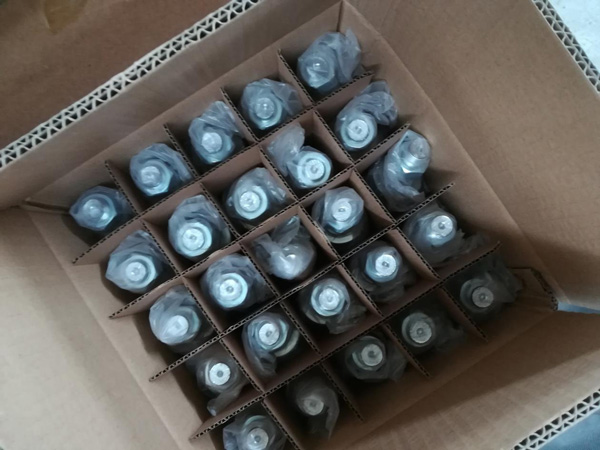

1-7/8”hitch ball, we usually package 25pcs per carton, final package is export standard plywood pallet or crate. Customized package is acceptable.

Product Application

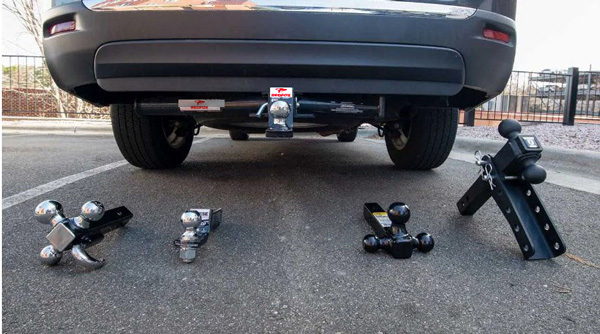

1-7/8" hitch ball usually comes together with the ball mount, hitch receiver, tri-ball hitch, adjust hitches, tow hook, etc., it is mounted at the rear of the car, trailer, boat to be a small towing part.

Production Process

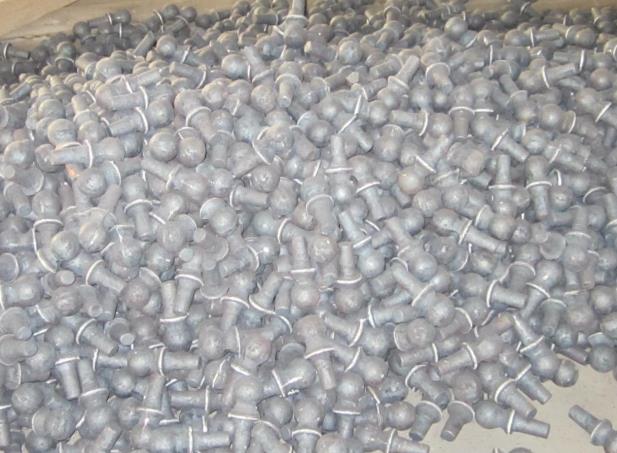

Raw material cutting-Forging-Maching-Polishing-Electric plating-Package

After the above process, a whole hitch ball is finished and shipped to end customer.

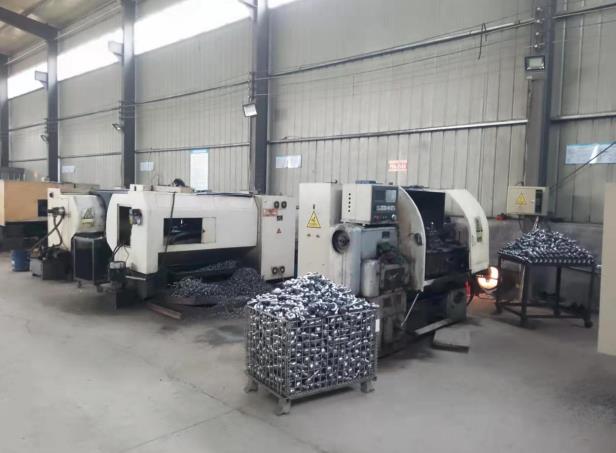

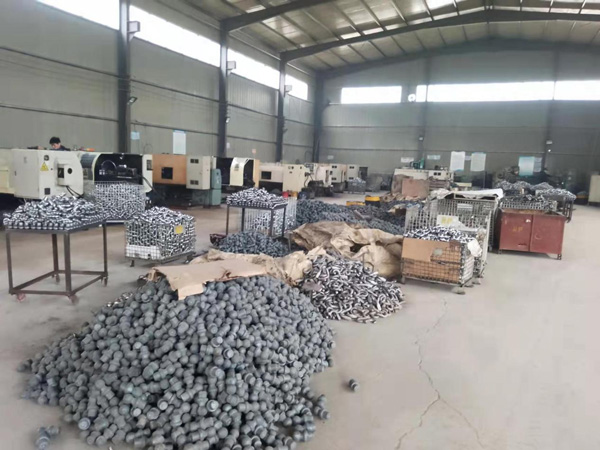

Factory
