Weight Hitches Spare Parts
Weight hitches are essential if you plan on towing a large or heavy trailer, as they help to evenly distribute the weight across the trailer and vehicle axles. Here are some factors to consider when looking for a superior weight hitches:
1. Weight capacity: Look for a weight hitches with a weight capacity that matches the weight of your trailer and tow vehicle. This can range from 5,000 lbs to over 15,000 lbs.
2. Sway control: Choose a hitch that includes sway control to keep the trailer from swaying back and forth behind the tow vehicle, which can be unsafe.
3. Ease of Use: Choose a hitch that is easy to install and detach from your vehicle when not in use. Some hitches may require additional tools or expertise, so be sure to consider your DIY skills before purchasing.
4. Durability: Look for a weight hitches made from high-quality materials that can withstand the elements and regular use. Some hitches may be powder-coated or made from corrosion-resistant materials to provide extra protection.
5. Price: Like most automotive accessories, weight hitches come at various price points. Be sure to assess your budget and compare prices based on all the above factors before making a purchase.

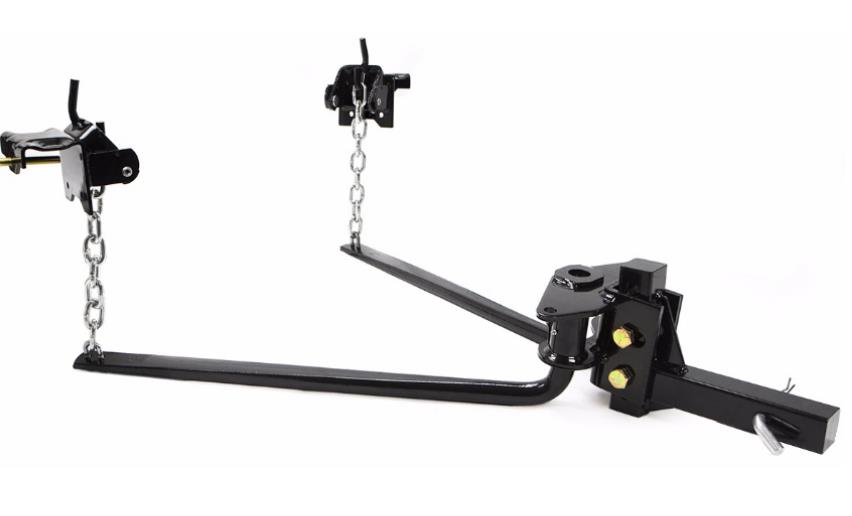

1.REDFOX 10000 pounds Weight Hitches(WDH)

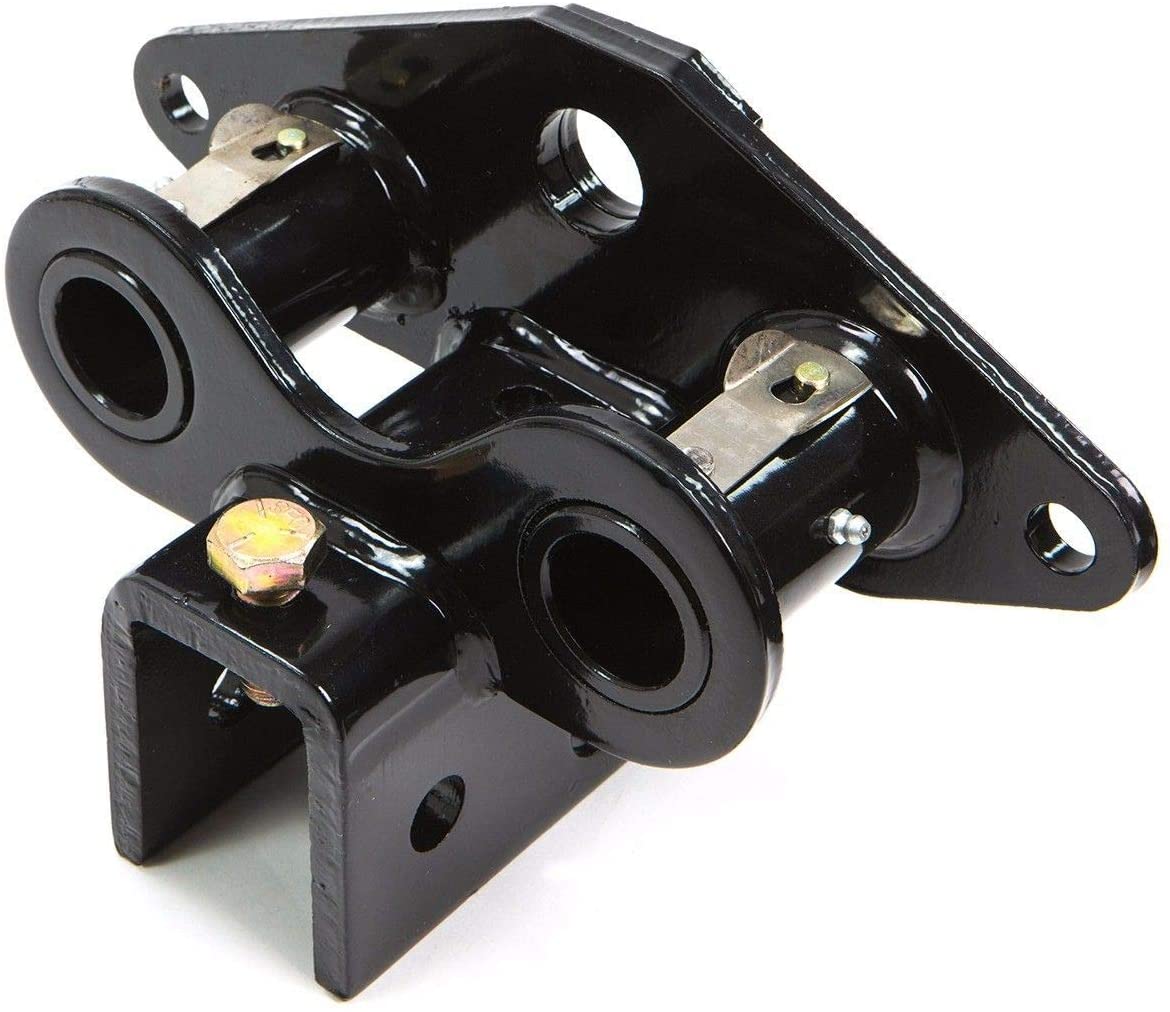

2.REDFOX’s hitch design reduces installation time. Design allows easy access to hitch ball shank. Features built-in sway control ball platform. Hitch head accepts different spring bar capacities for maximum versatility and reduced inventory

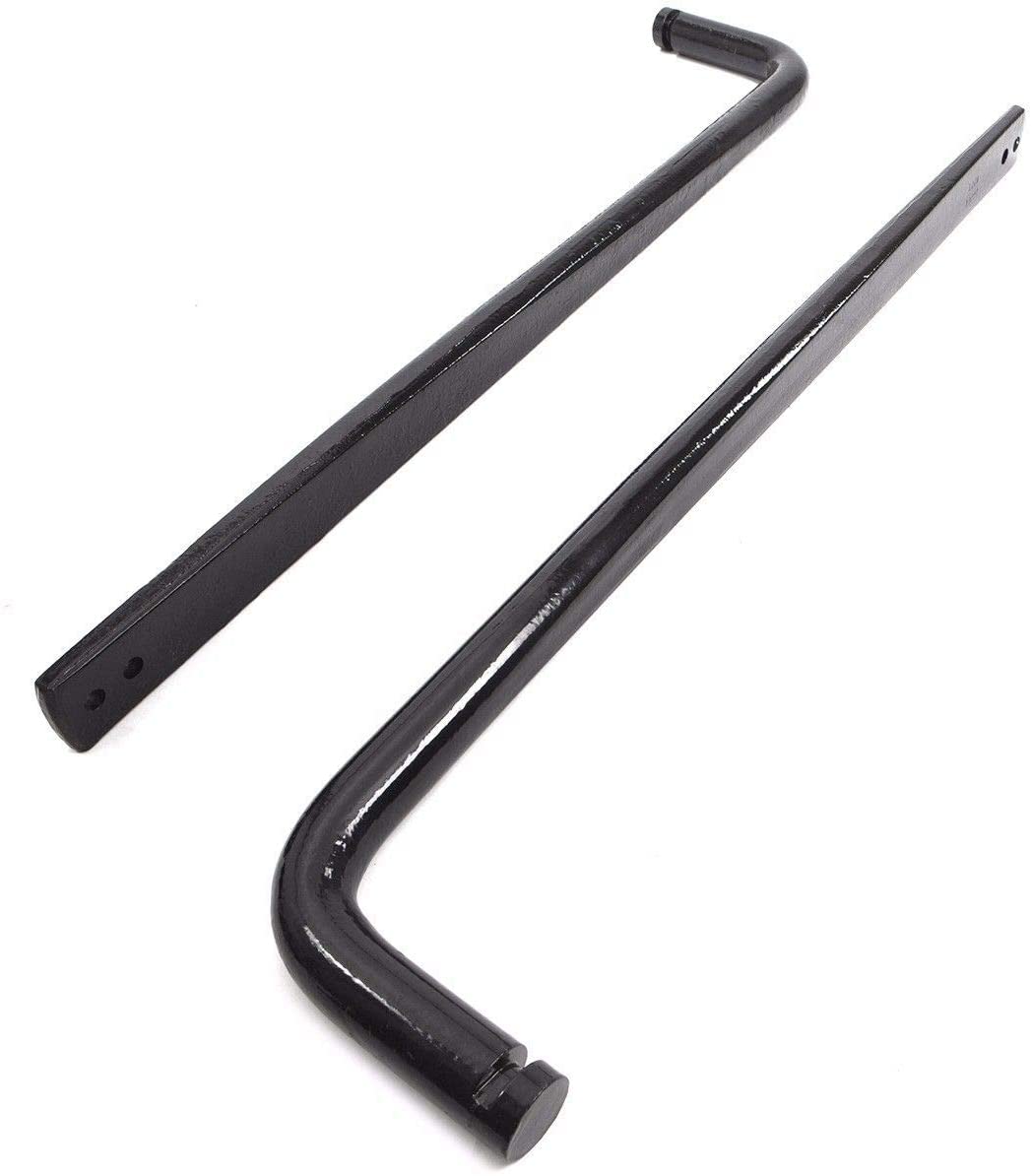

3.Black polyester finish resists rust and corrosion. Lift brackets allow safe and easy hitch hook-up. Interchangeable spring bars fit left or right sides of hitch head. Includes assembly hardware and chains.

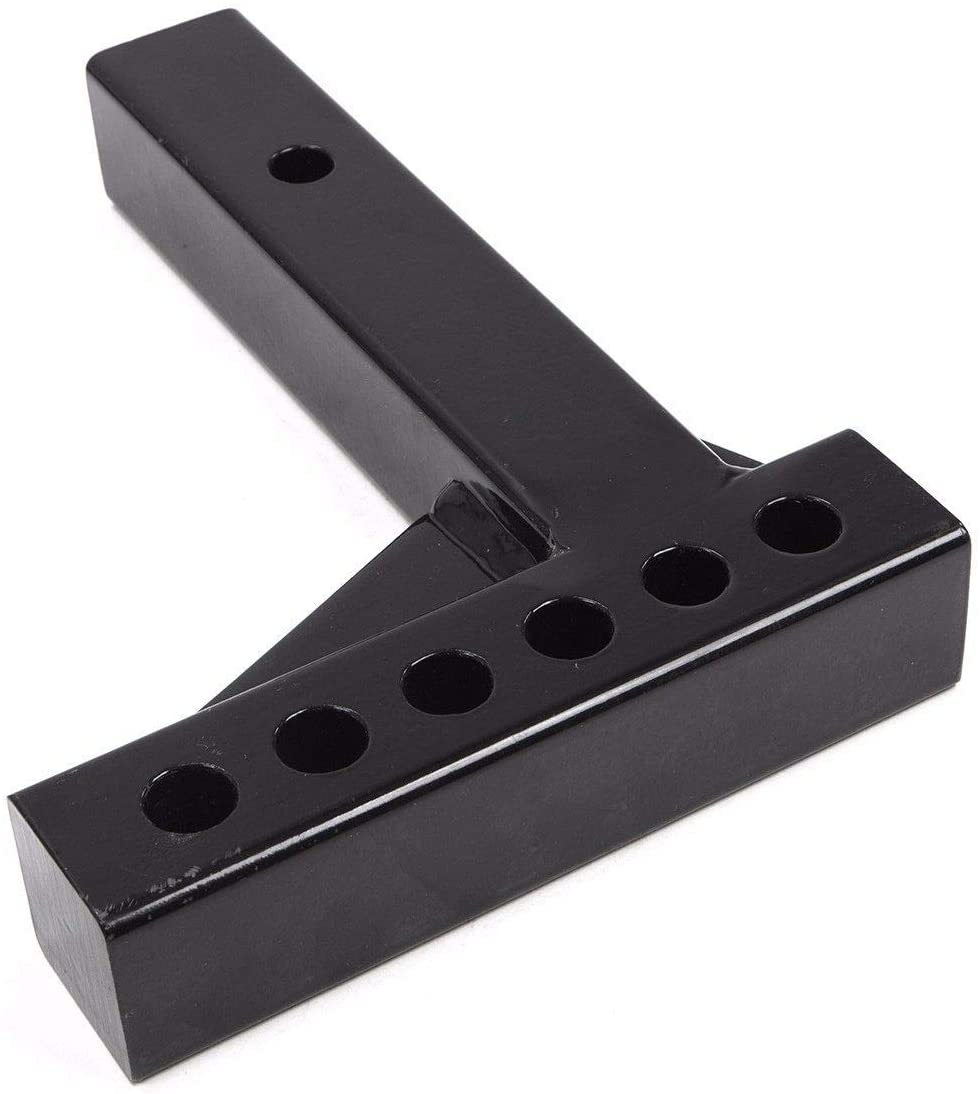

4.8 inch total height adjustment, rise is 5-5/8 inch, drop is 2-3/8 inch, shank length is 10 inch, ball to pin hole is 12-3/4 inch. Dual sway control platform, 1-1/4" hole on head assembly requires 1-1/4" shank on trailer ball
5.Tongue weight range is 1000 lbs and gross trailer weight is 10,000 lbs
6.Balls are included
Item | Weight Hitches |
Loading Capacity | 10000lbs |
Spring Bar Capacity | 1000lbs |
Hitch Ball | 2-5/16 inch |
Hardwares | all included |
Application | Trailer, Car, Camper, etc. |
Finish | Black powder coating |
Weight Distribution Hitch Capacity Different, From 5000-14000lbs | |

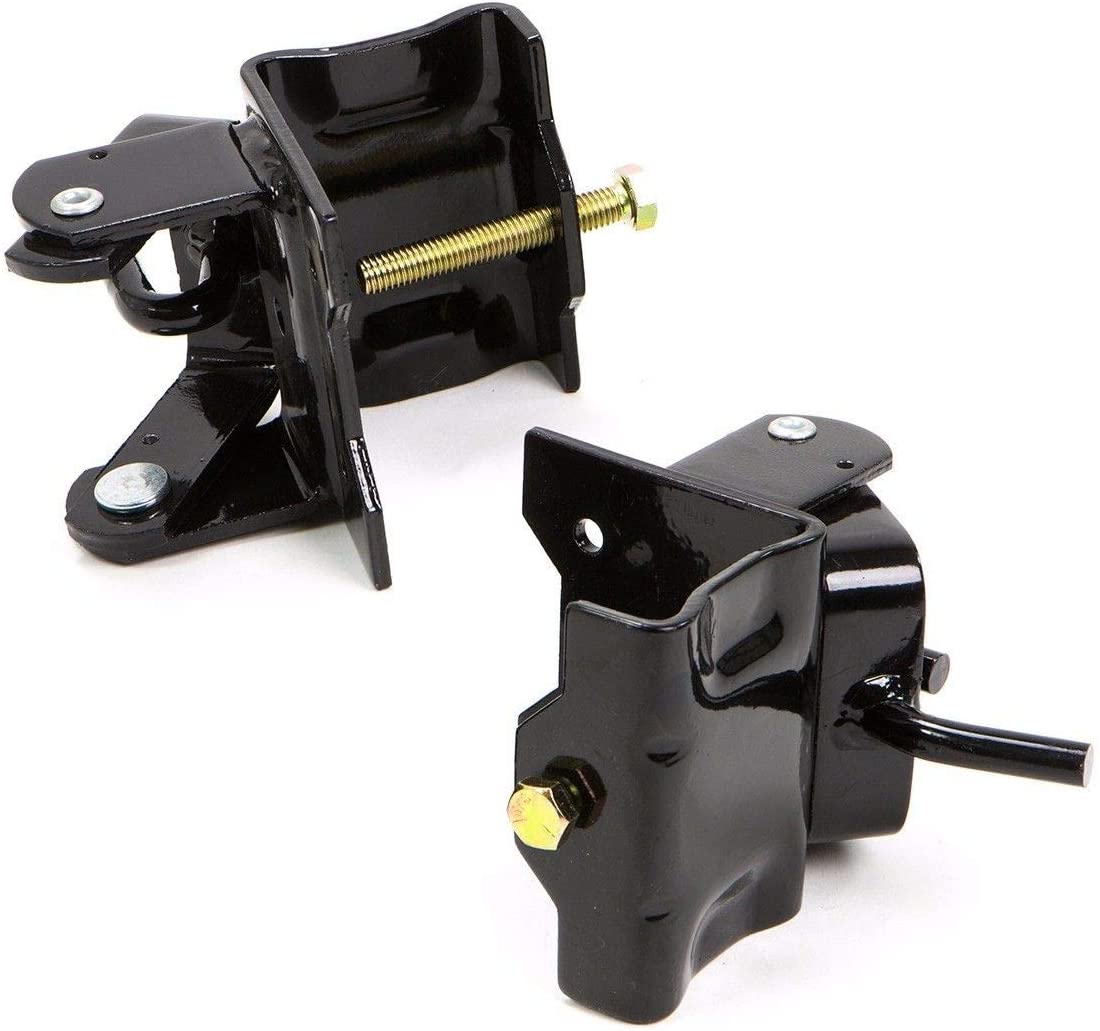

Weight Hitches NO Sway Control Package

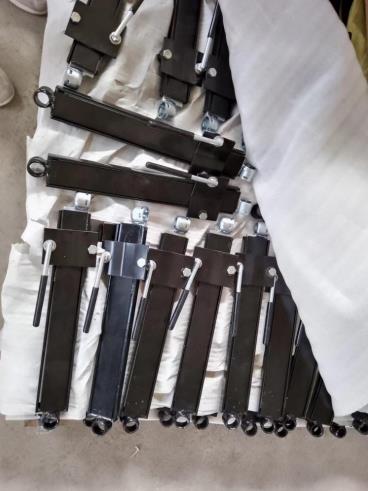

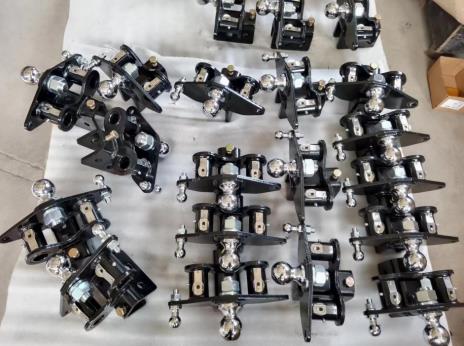

Regular package is strong carons with separate partition inside;
Customized package is acceptable.
How to use a Weight Hitches?
A weight hitches is a device that helps distribute the weight of a trailer evenly across the axles of the towing vehicle. Here's how to use it:
1.Start by measuring the total weight of your trailer and the tongue weight (the weight that rests on the hitch of the towing vehicle).
2.Adjust the ball height on the hitch of your towing vehicle to ensure that the trailer is level when attached to the hitch. This will help ensure the weight is distributed evenly.

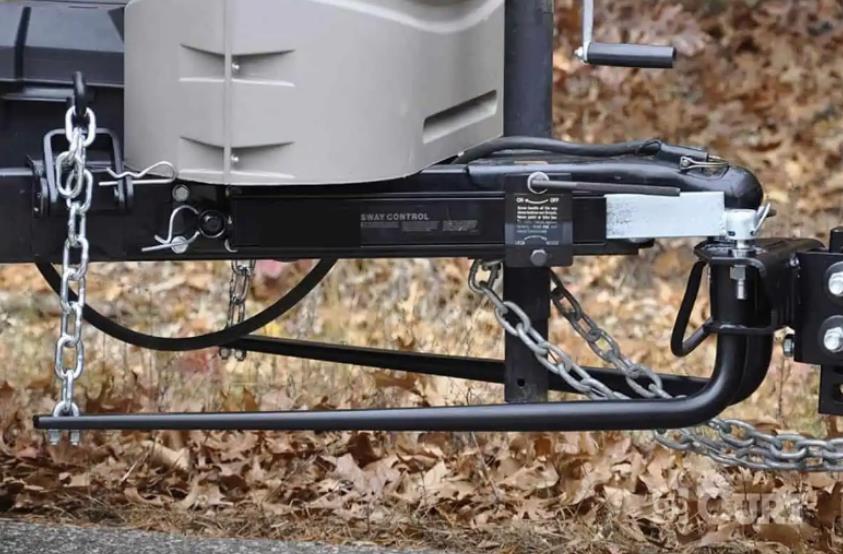

3.Now attach the weight hitches onto the ball mount and secure it onto the hitch ball. Some weight hitches may come with a sway control system that attaches to the hitch as well.
4.Connect the spring bars to the weight hitches and then connect them to the trailer tongue.
5.Tighten the spring bars using the provided tools until they are even on both sides and the tow vehicle is level again.
6.Test drive the rig, making any adjustments to the weight hitches as necessary until you have a smooth and stable ride.
Remember, using a weight hitches is important for safety and ensuring that the weight of your load is distributed evenly across all axles.
